Certification: NONE
Origin: CN(Origin)

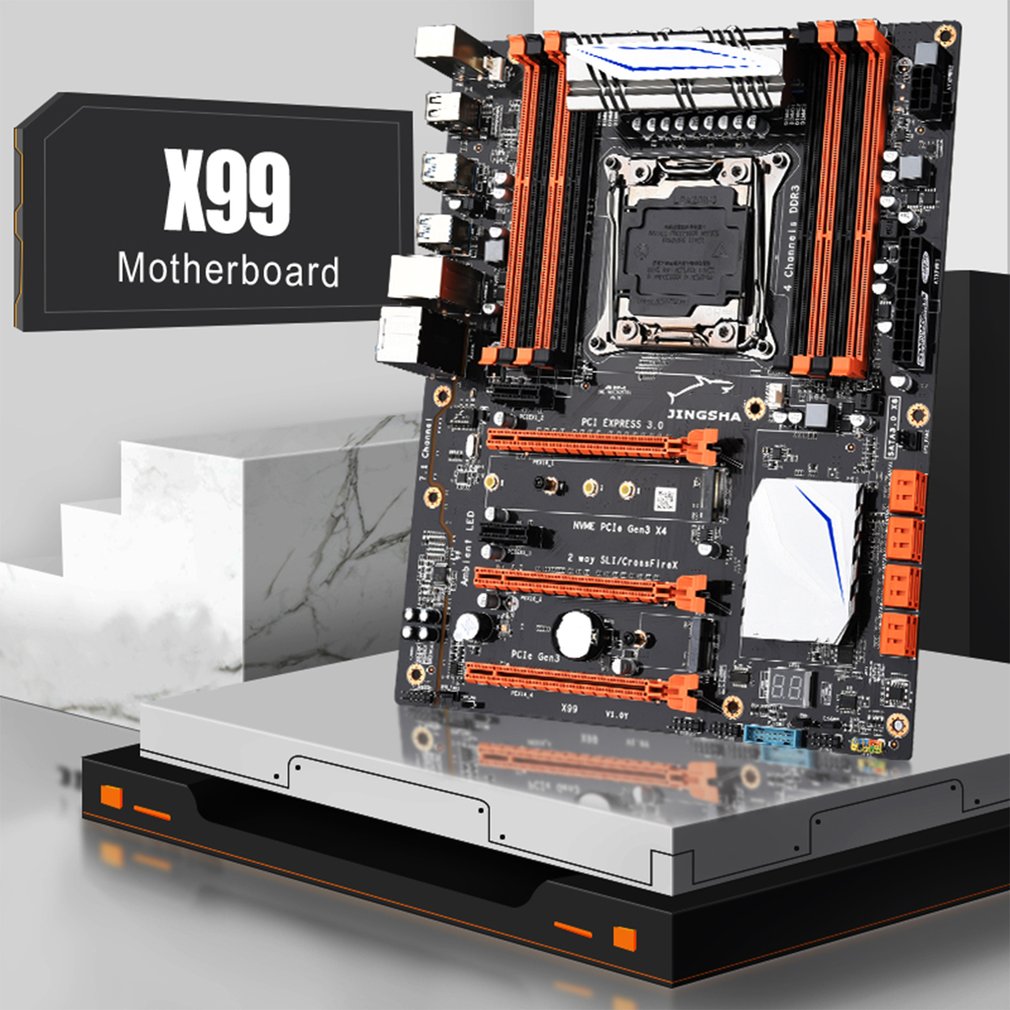

Chipset: X99

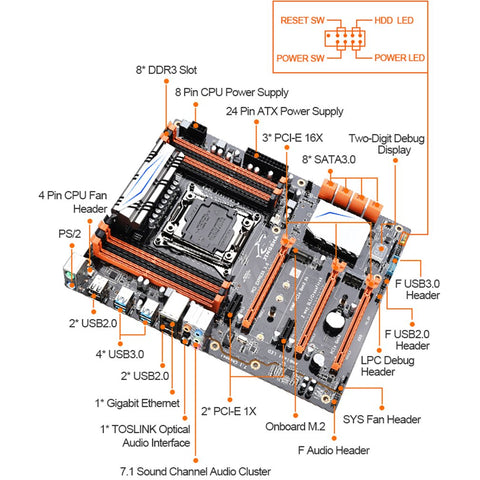

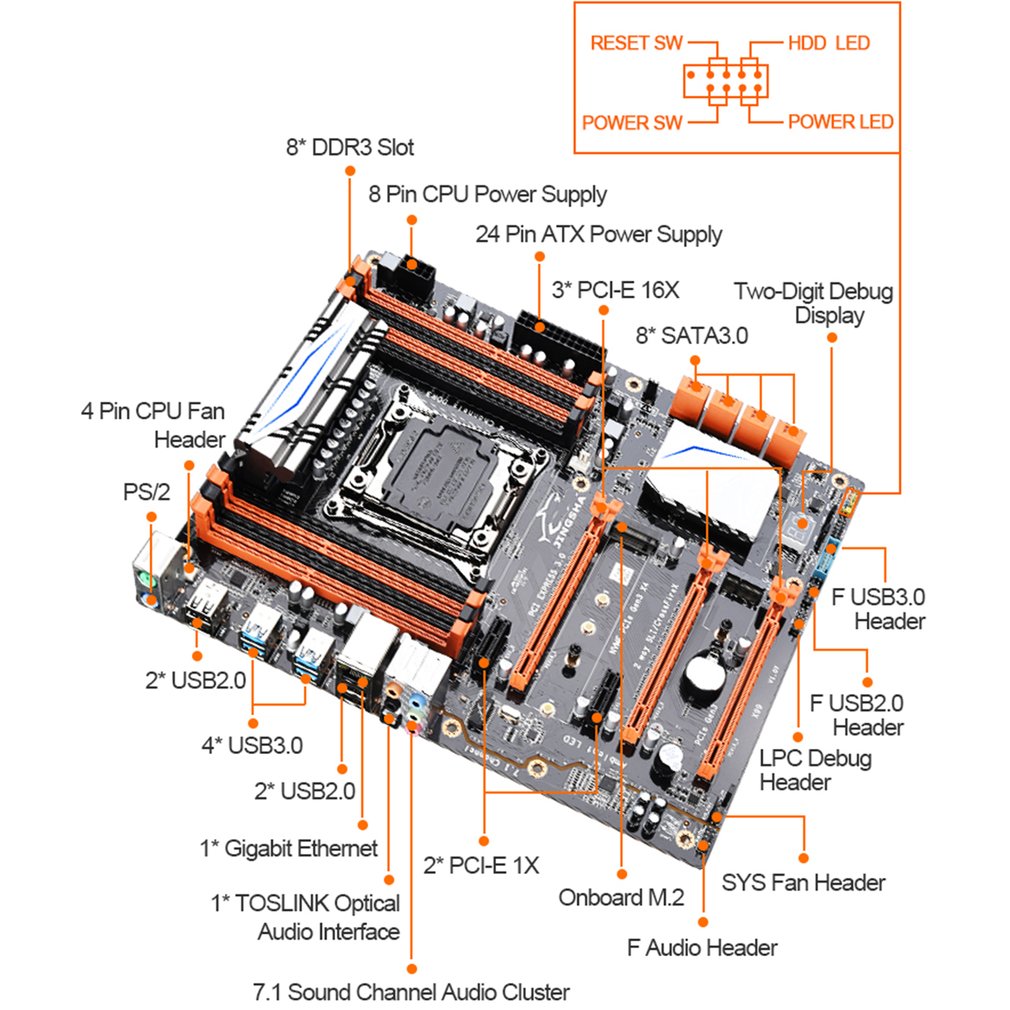

Number of memory slots: DDR3*8 four channels
MotherBoard type: ATX
Memory capacity: 256G
Motherboard size: 302MM * 244MM / 11.89 * 9.61in

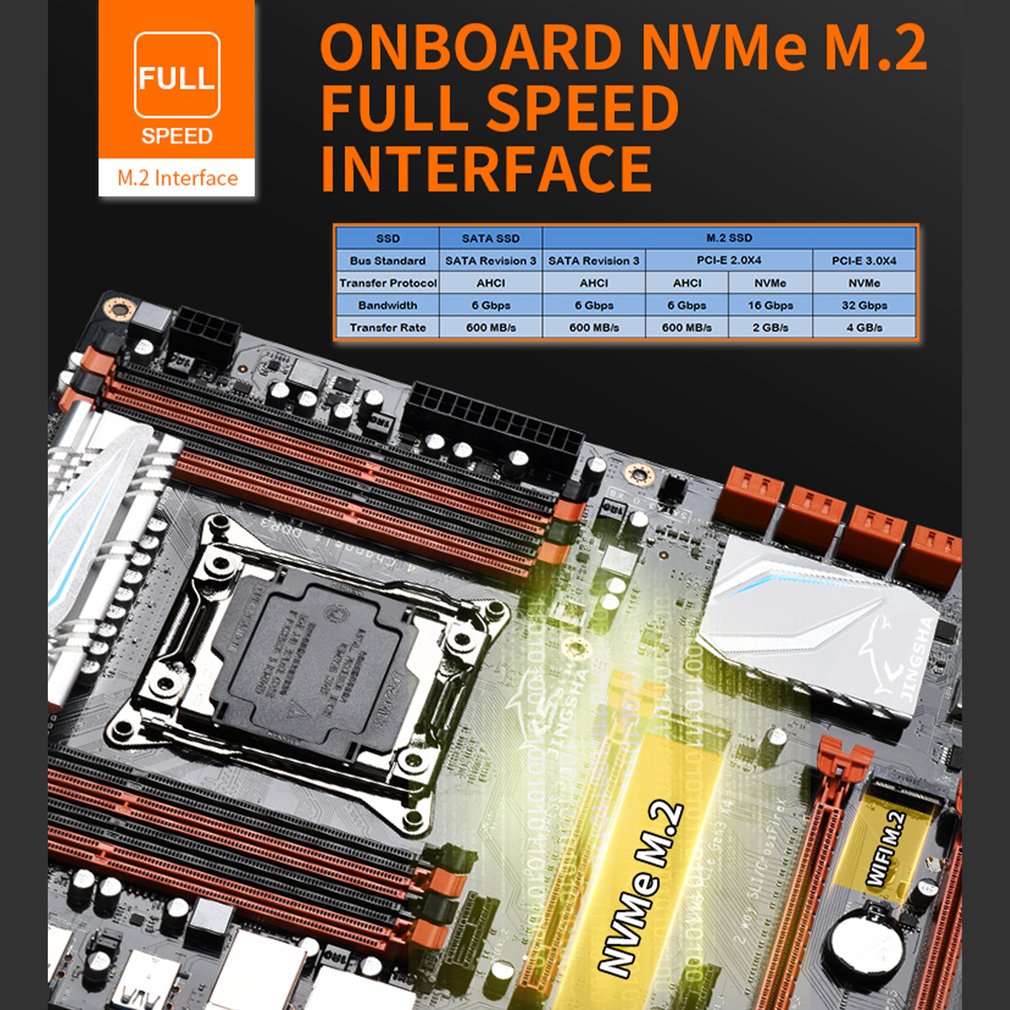

SATA interface: SATA 3.0 * 8, M.2 NVME interface
Graphics slot: PCIE 3.0 16X * 3
Network card: Gigabit adaptive network card *1
PS/2 interface: PS/2 mouse and keyboard interface
Sound card: support 7.1 channels
Power interface: 8-pin*1, 24-pin*1
CPU socket: support LGA2011 V3 processor

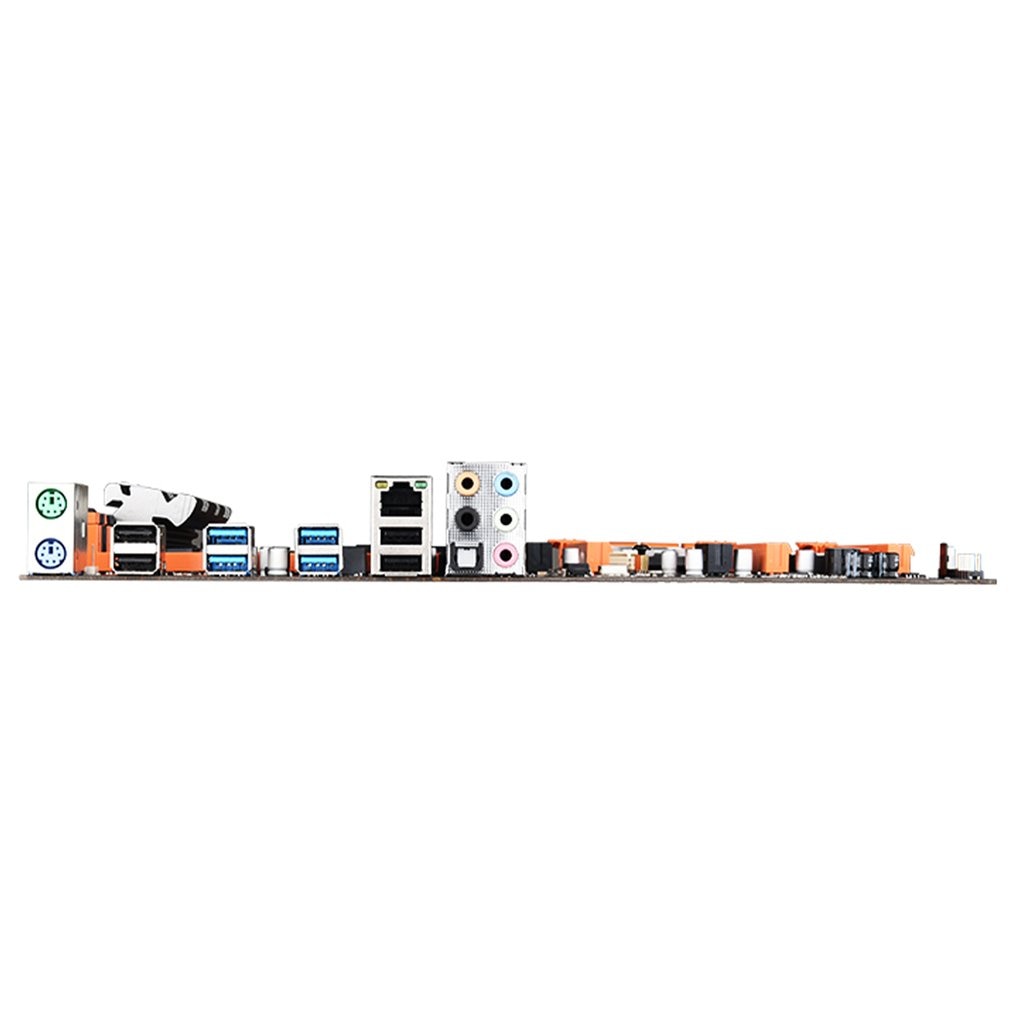

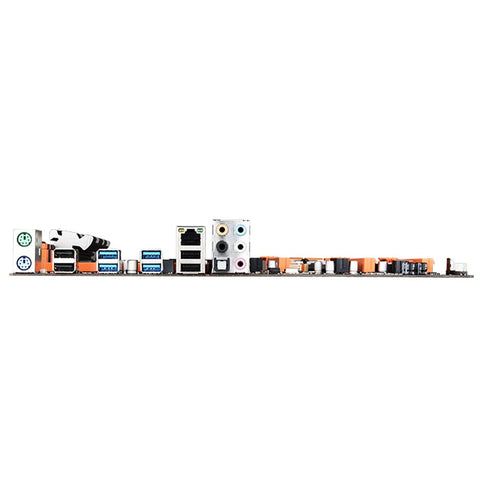

USB interface: USB3.0*6, USB2.0*6 PCB thickness: 10 layers Expansion interface: PC1EX*2, M.2 WIFI interface*1
CPU supported models: E5 2629 V3, E5 2649 V3, E5 2669 V3, E5 2678 V3, E5 2696 V3, E5 2676 V3, E5 2673 V3
